sunrise K Series
K-Series Ironworker
The K-Series is a specially designed ironworker with vertical movement on all stations.
The main slide moves up and down to provide optimum results for punching, shearing, notching, and bending. Standard features include gauge tables, LED work light, electric back-gauge, and more. Hydraulic hold-downs for shearing are standard on Models 66K, 66KB, and 66-KBN. The adjustable stroke and high speed greatly improve the efficiency. These models incorporate versatility, efficiency, accuracy, and ease of use at an excellent price. All K-Series models now come with a standard 3 Year Parts and 1 Year Labor Warranty.
Capacities:
- 50-66 Tons
- 12″ x 3/8″ – 14″ x 9/16″ Flat Bar
- 3″ x 3″ x 1/4″ – 4″ x 4″ x 3/8″ Angle

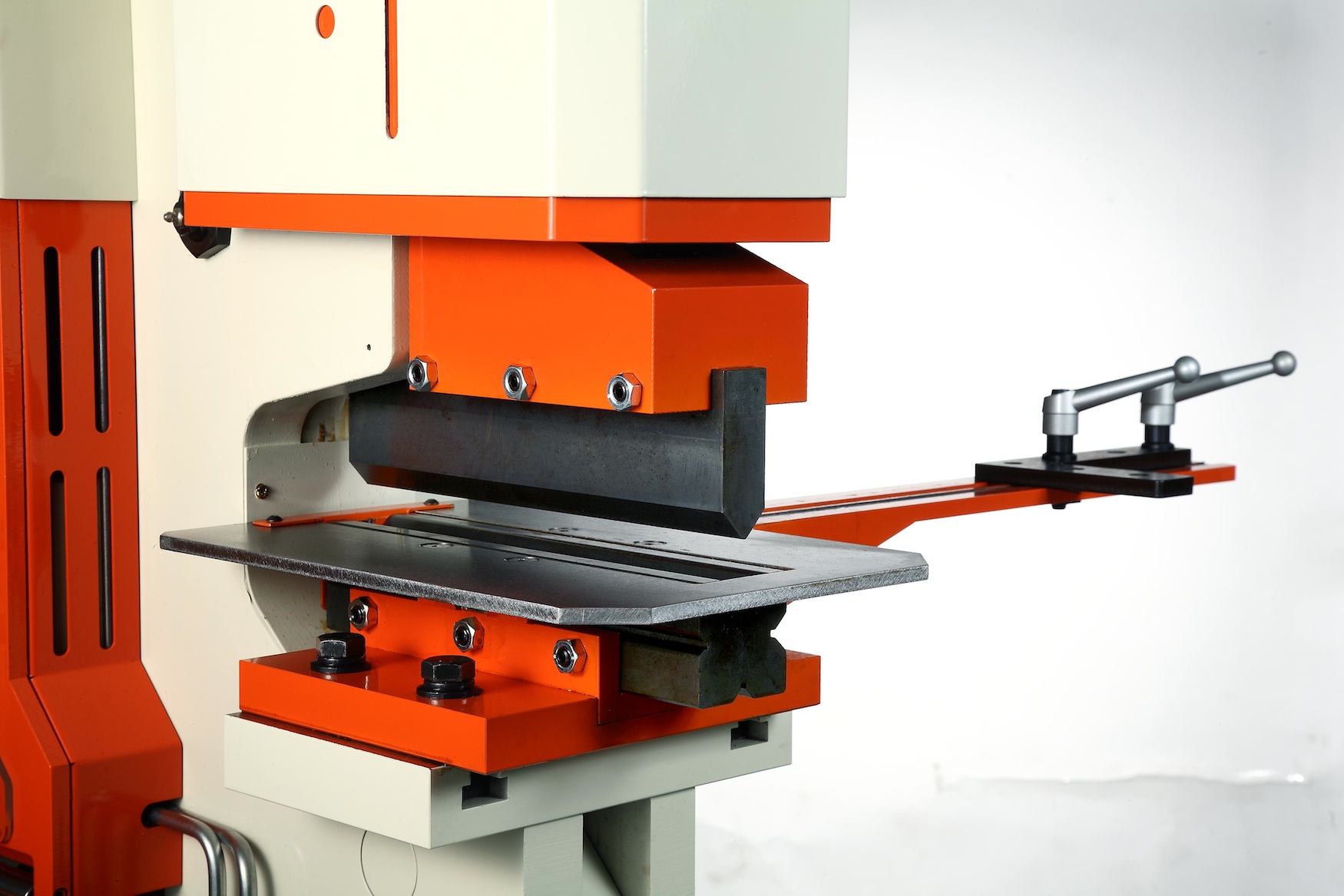

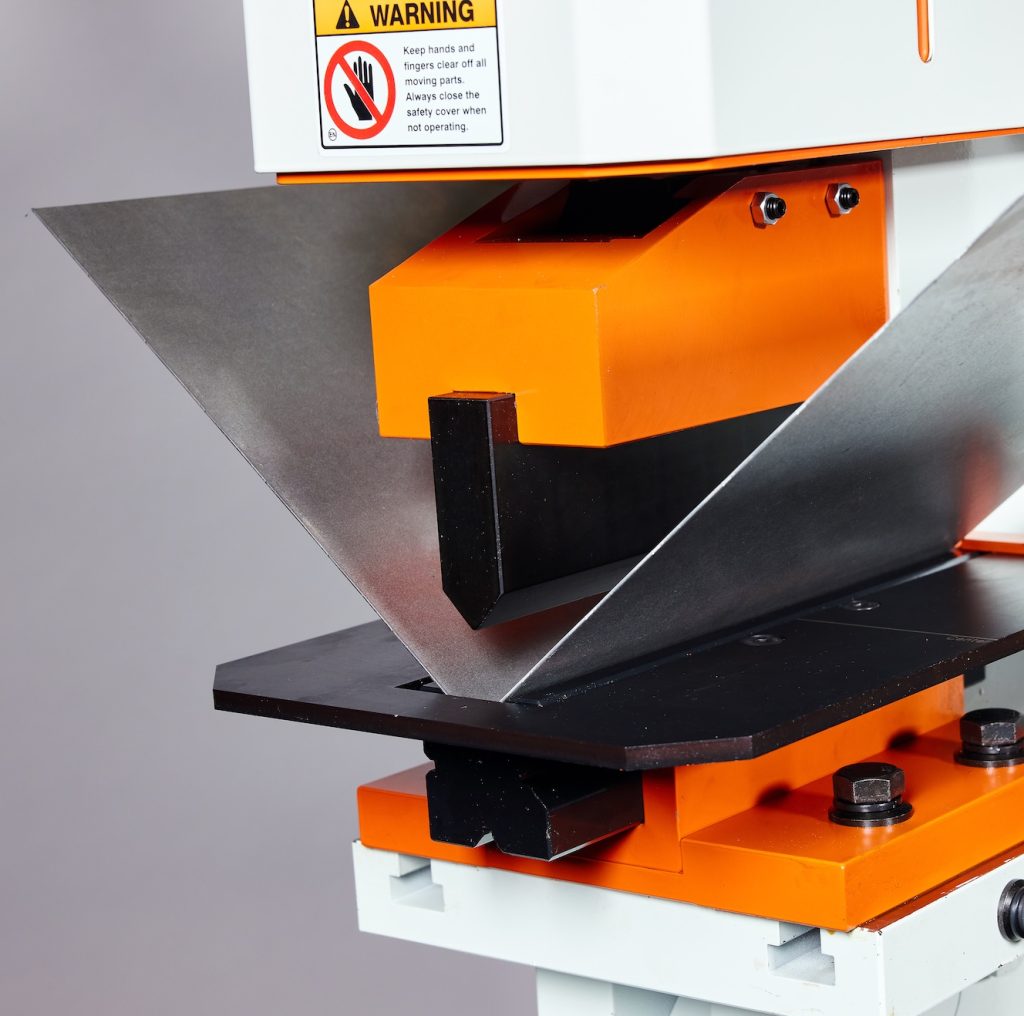

- Rectangular Notcher or 12″ Press Brake (only on 66KB)

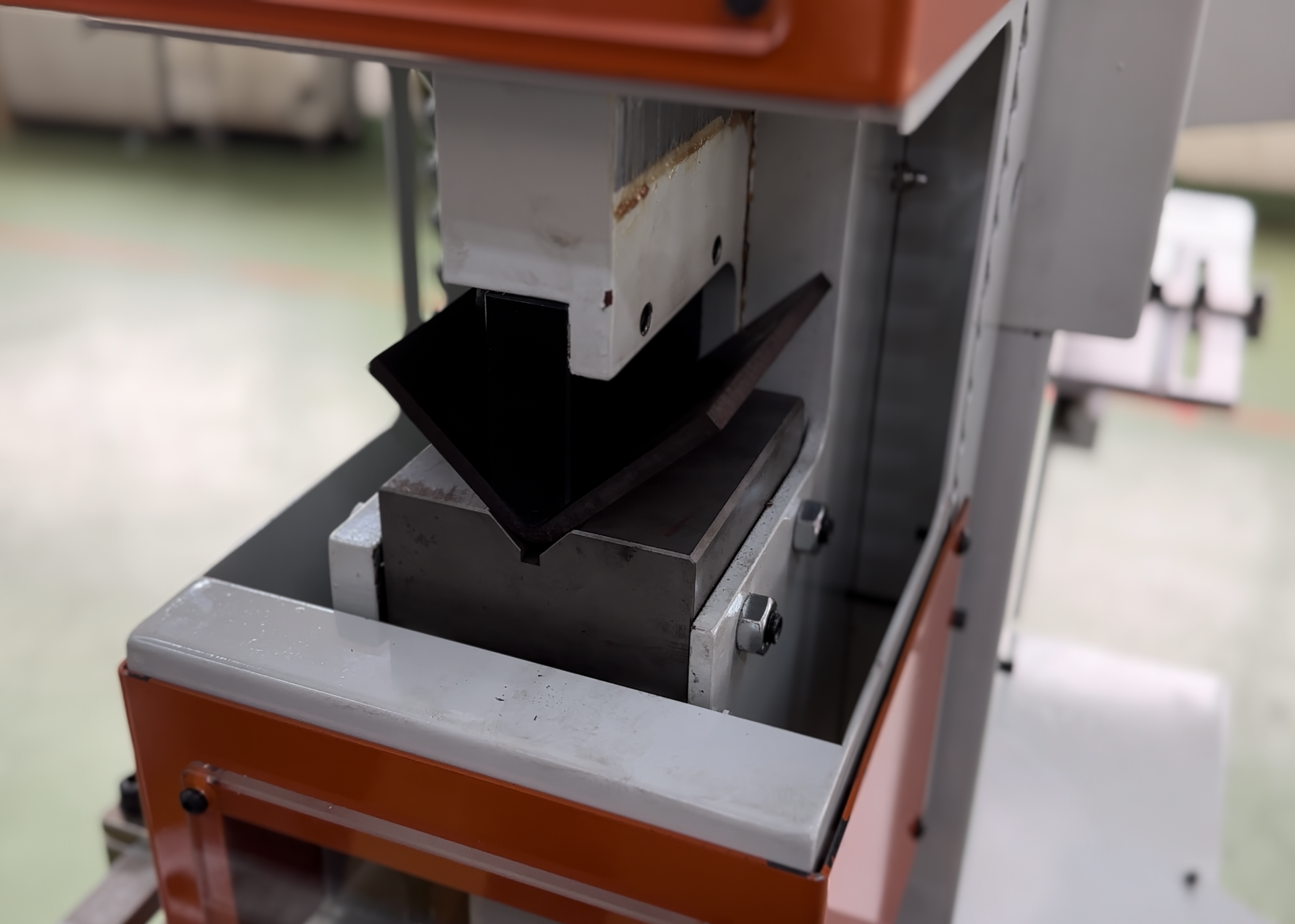

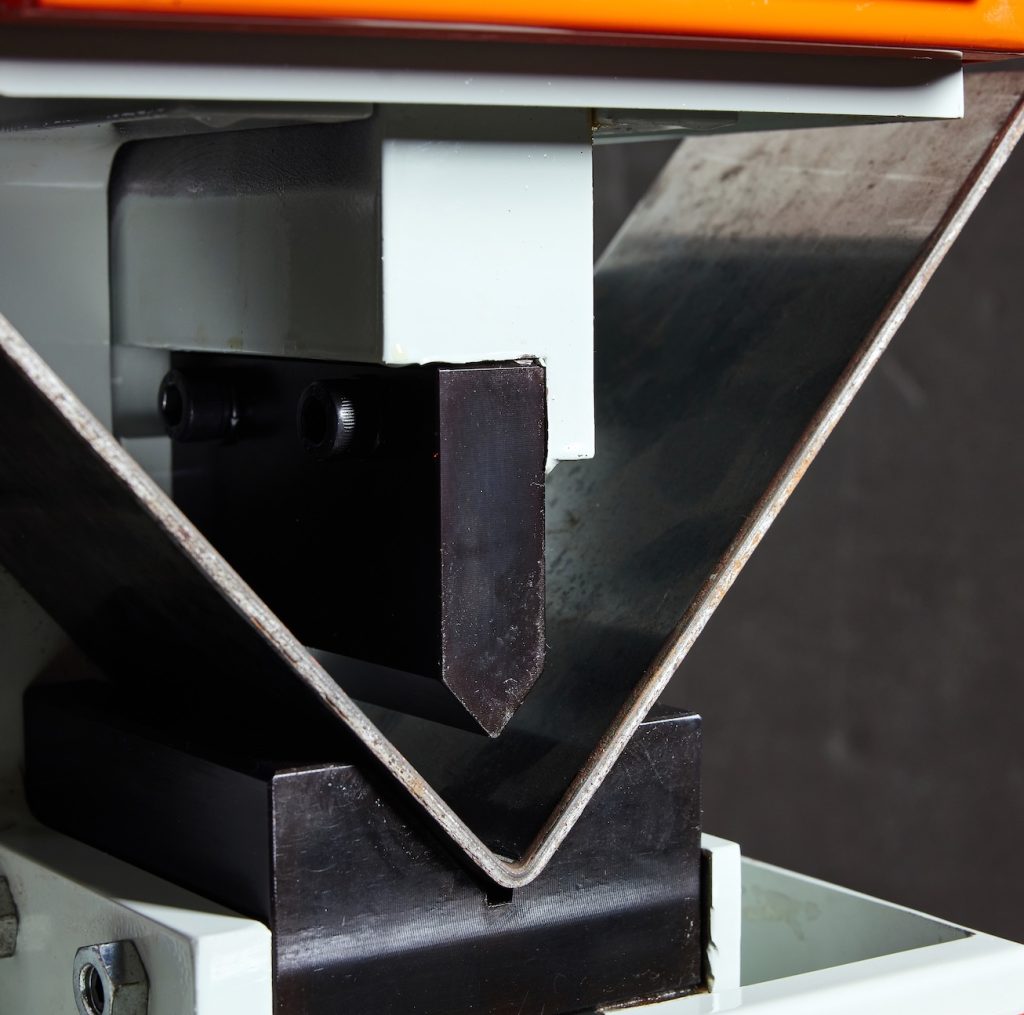

- 66KBN features a Rectangular notcher and a 4″ single-vee press brake.
Applications include:
- Fabrication of structural components like beams, columns, and brackets for construction
- Production of metal parts, components, and assemblies used in various sectors
- Custom metal fabrication
Get to know the K Series
Standard on all K-Series Ironworkers
- 40″ Electric Back Gauge (Optional extensions to 12′ available)

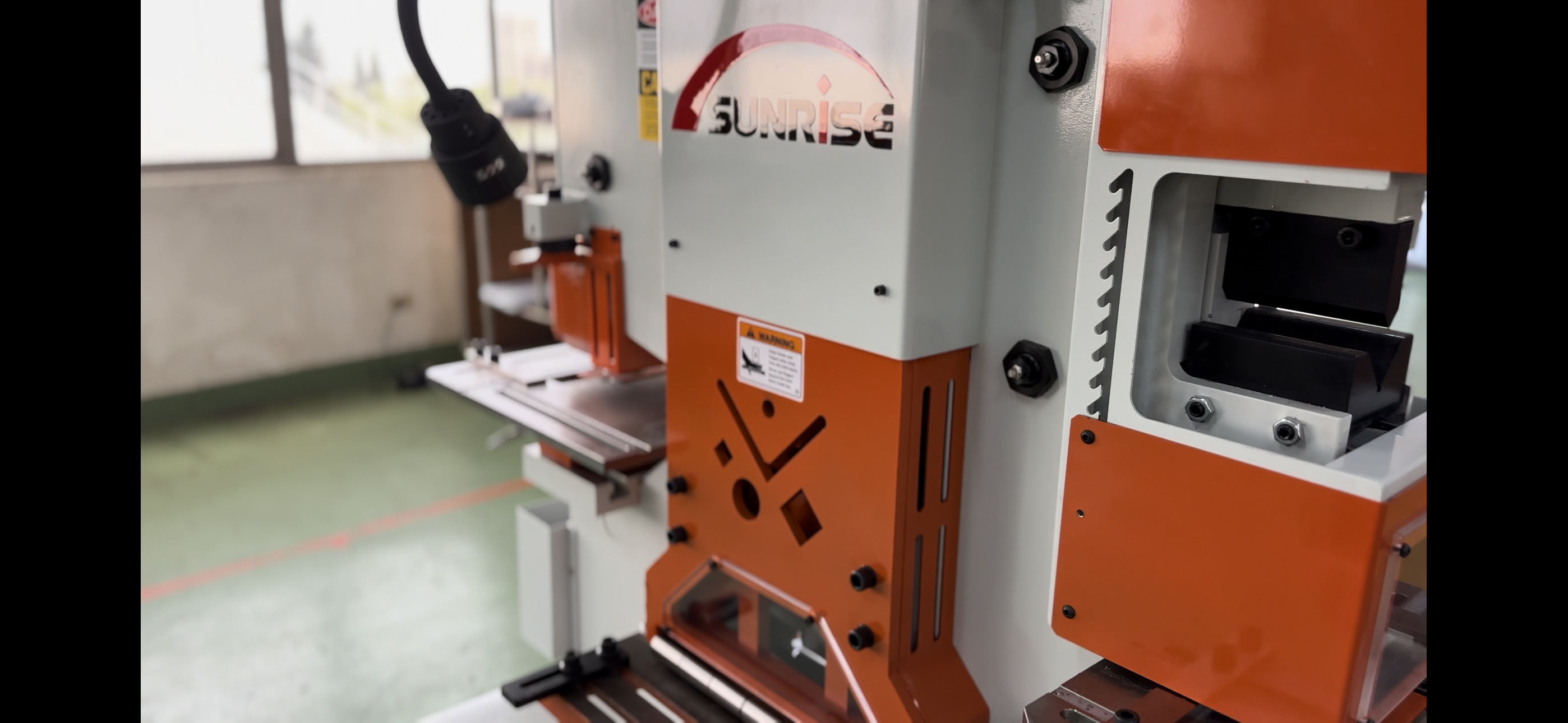

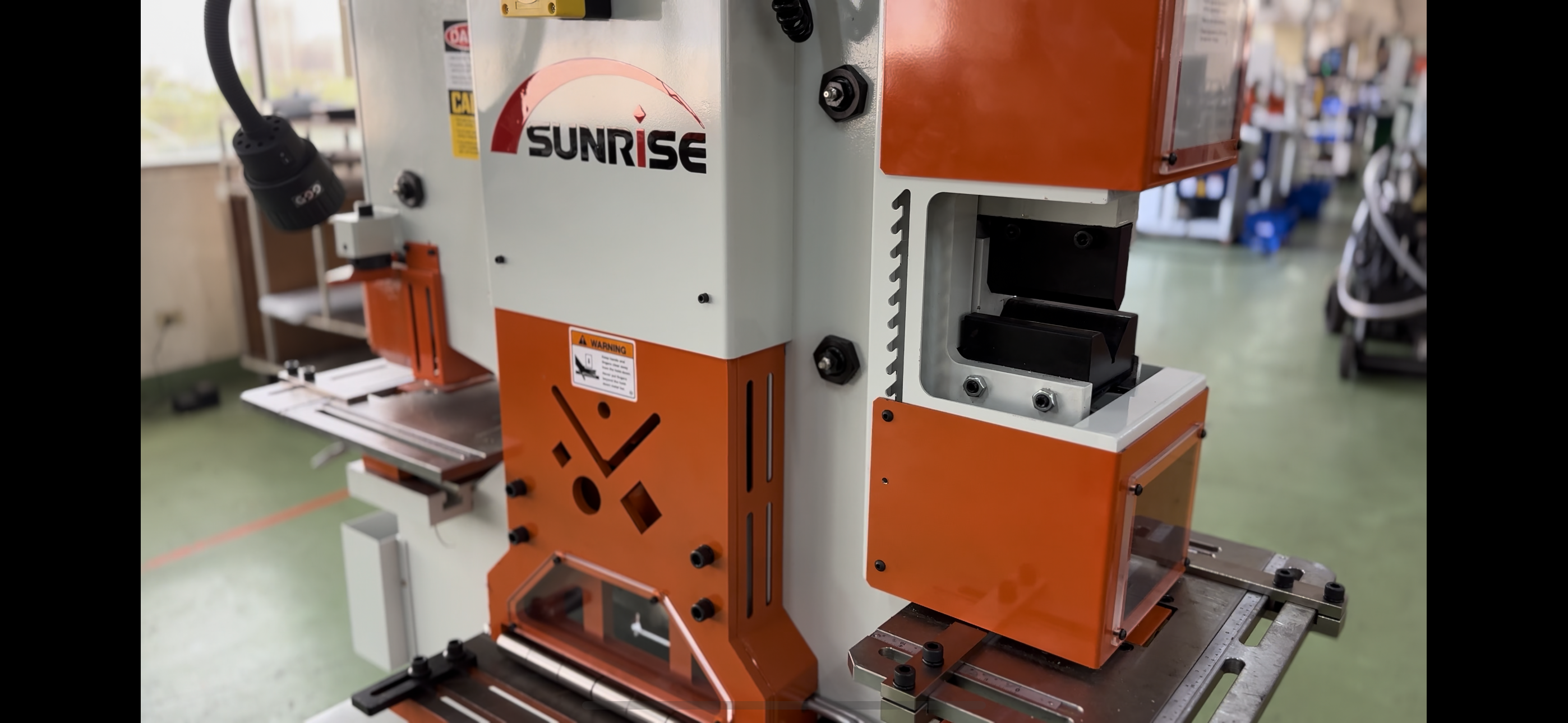

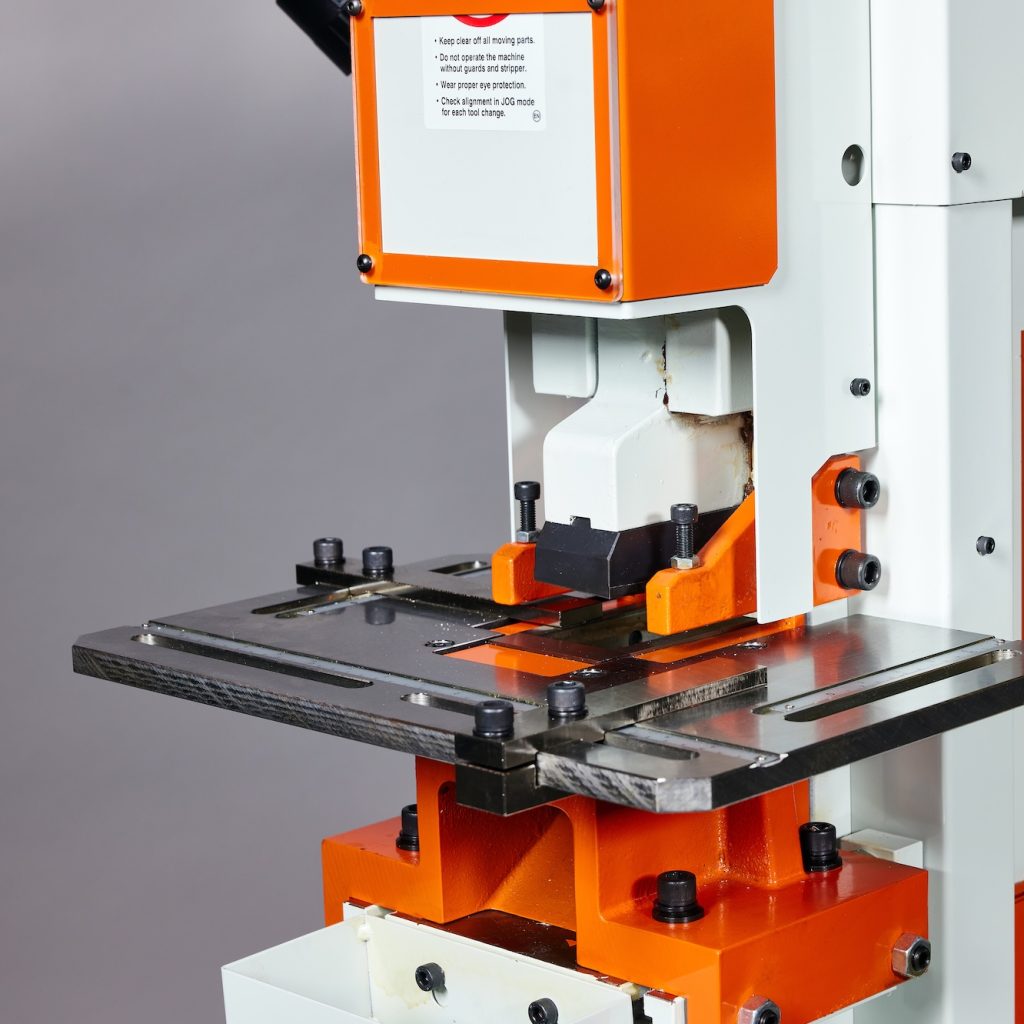

- Machined Notcher (Except 66KB) and Punch Gauge Tables with X-Y Positioning System

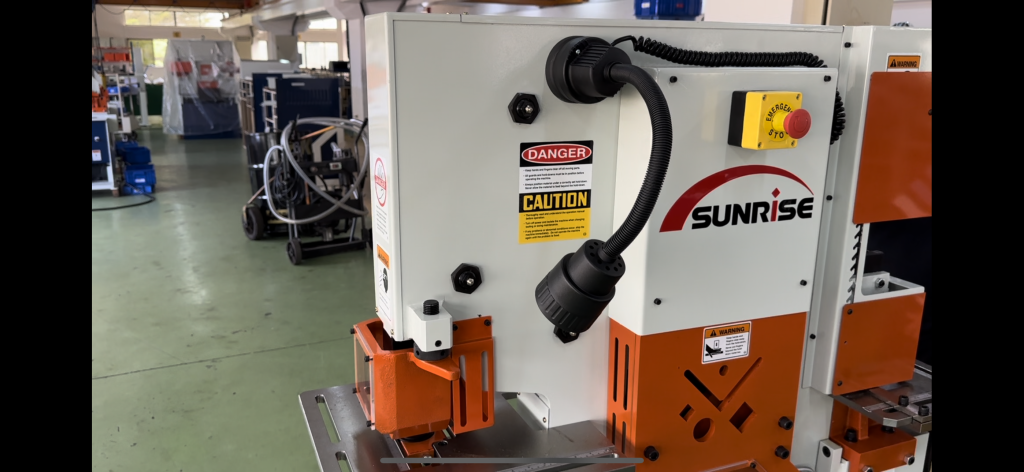

- Magnetic-Base LED Work Light
- Set of 11 Punches & Dies from 3/8″ – 1-1/2″

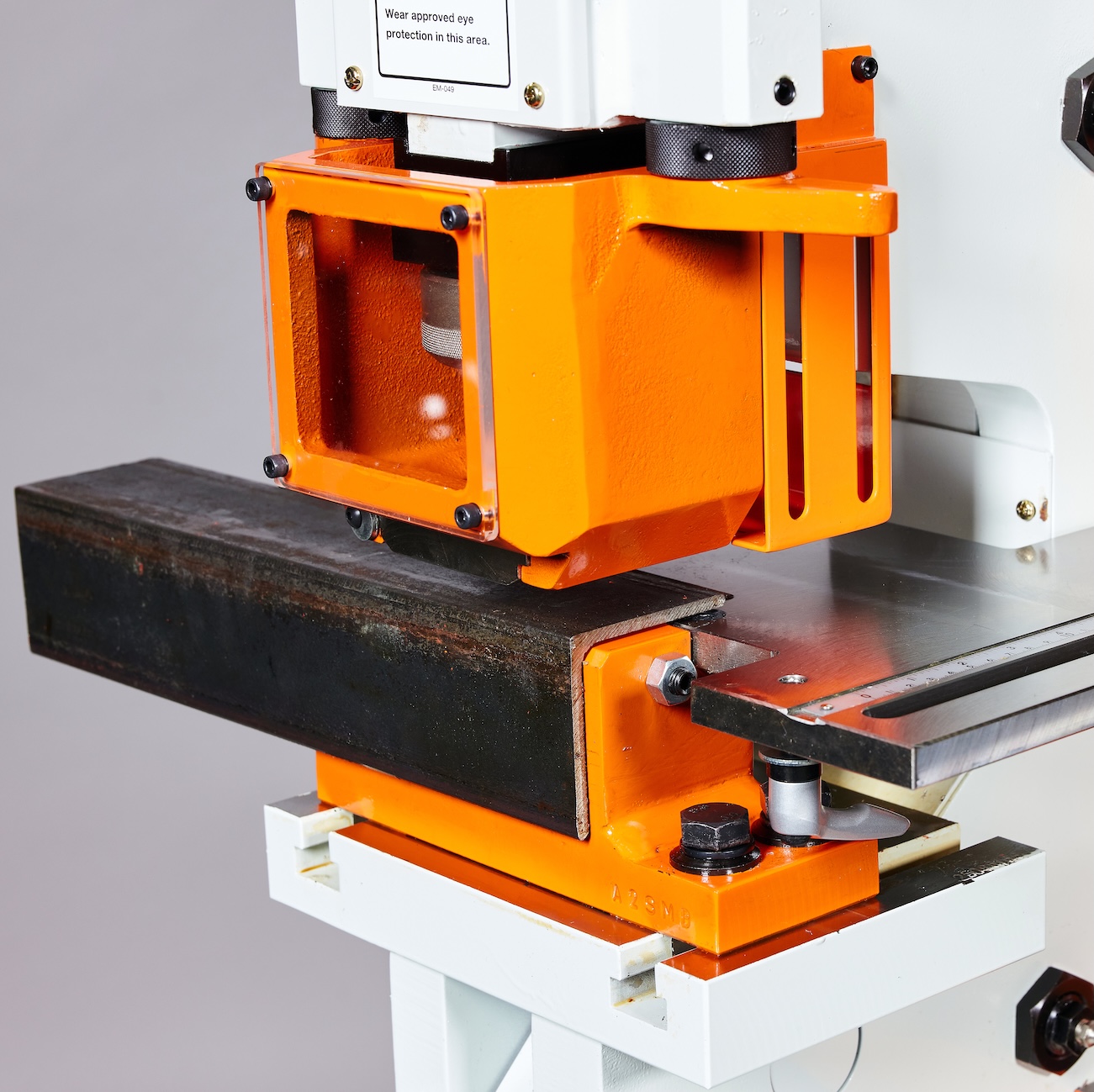

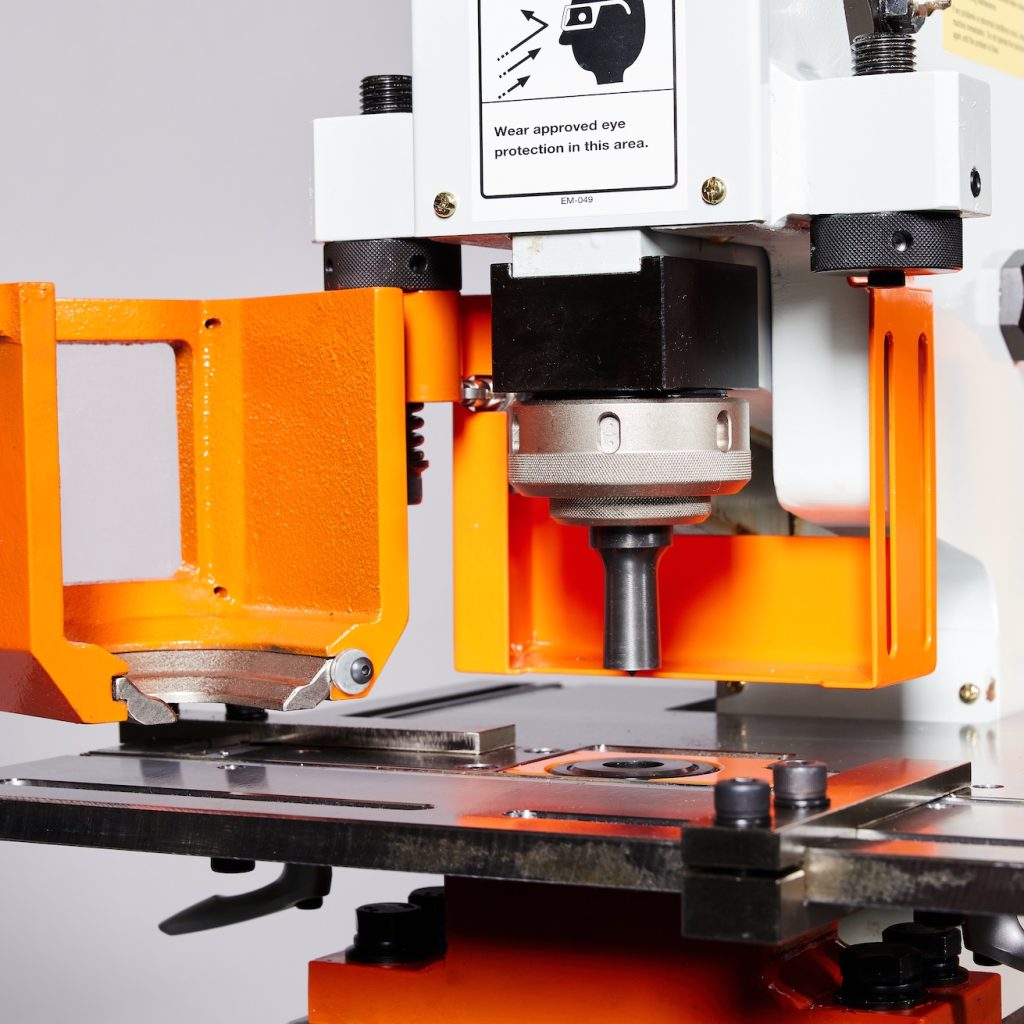

- Structural Die Block and heavy-duty swing away stripper for up to 1.5″ diameter hole capacity, including overhang for angle
- Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB
- Full tank of Hydraulic Oil

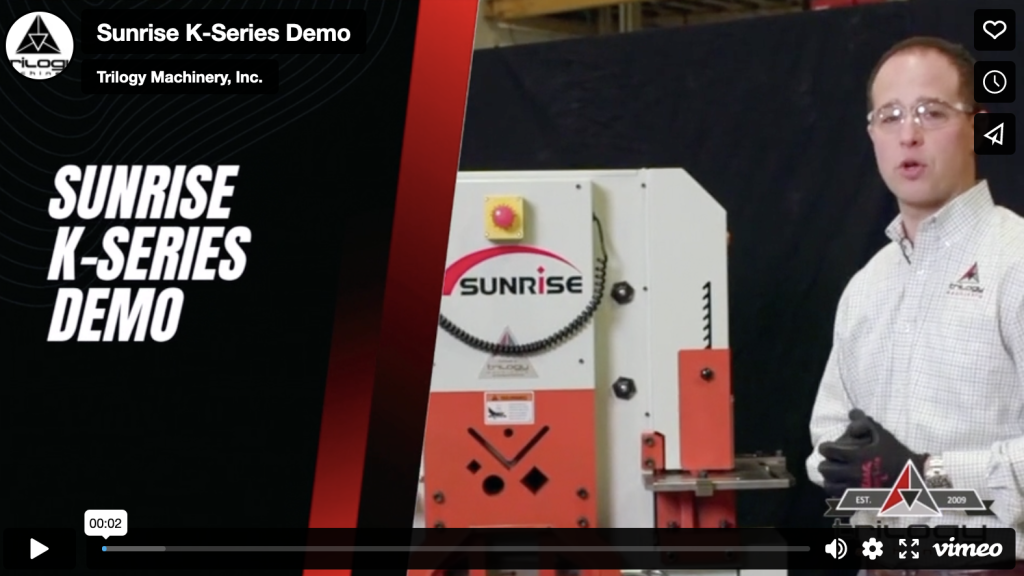

- Start-Up Video including safety, maintenance, and operation

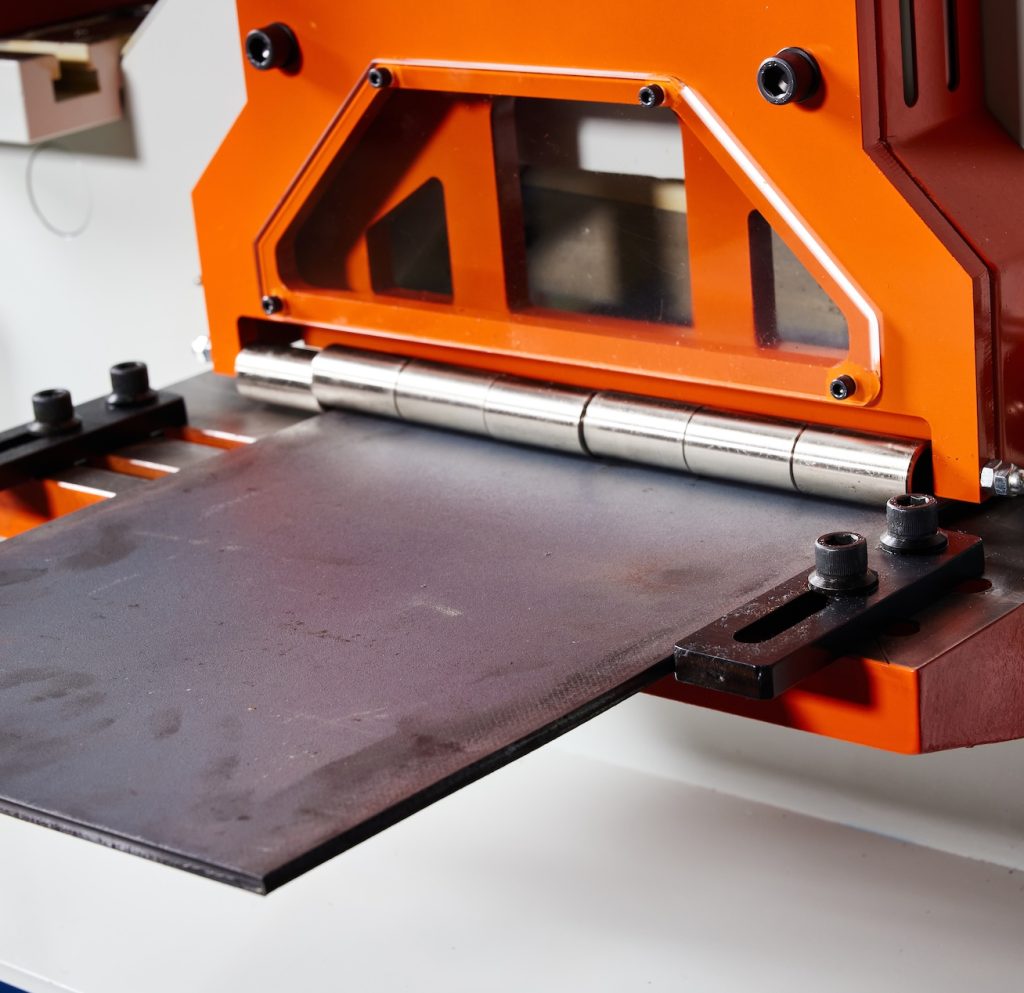

- Hydraulic Shearing Hold-Downs (Standard on IW-66K/KB/KBN)
- Best in the Business – 3 Year Parts – 1 Year Labor Warranty
Optional Features
- Press brakes
- Notchers
- Oversize kits
- Pipe notchers
Need a Larger Capacity?
Check out the S/SD Series!
| Model | Capacity | Description | Price | Status | Info | |
|---|---|---|---|---|---|---|
|

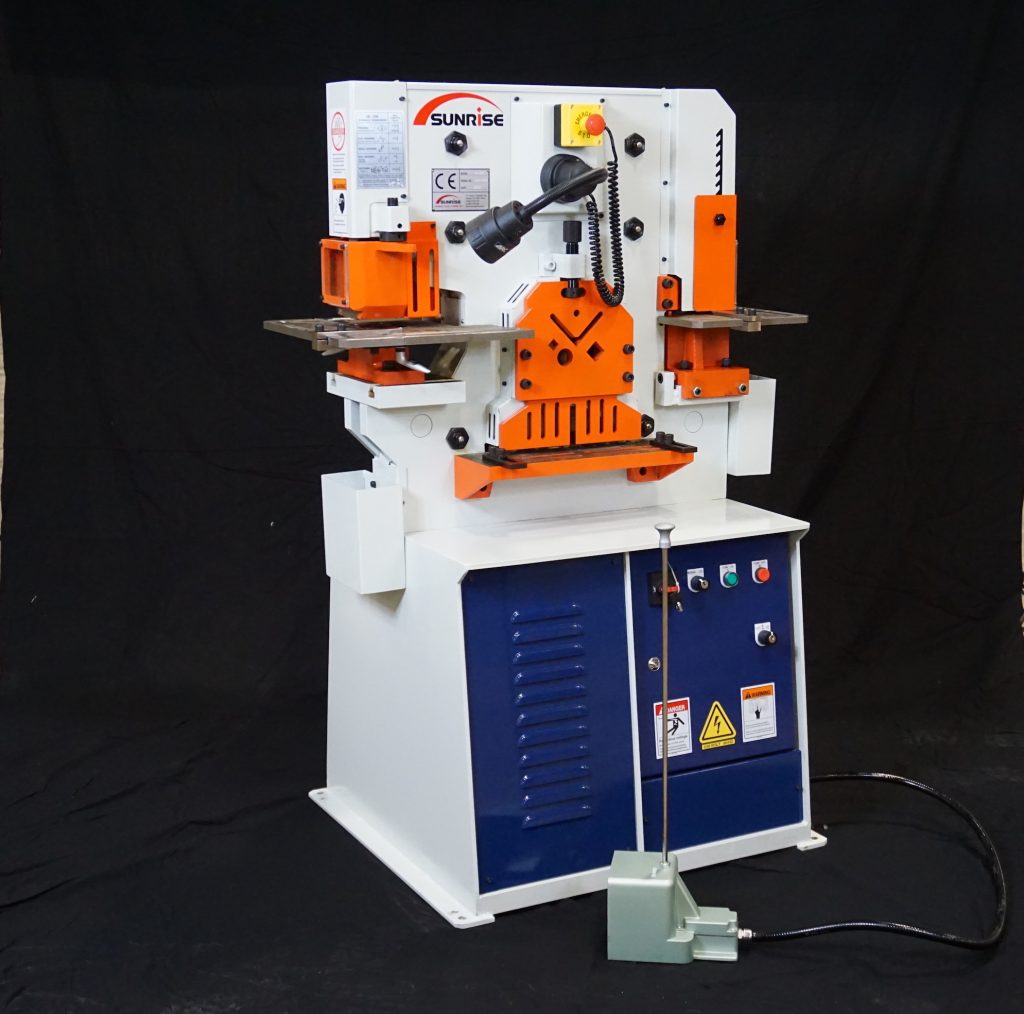

Sunrise IW-50K – Hydraulic Ironworker Capacity: 50 Tons | 3″ Angle | 12″ Plate |
50 Tons | 3″ Angle | 12″ Plate | New, Single Cylinder, High-Speed, Vertical Design, Includes Efficiency Package, New 3 Year Warranty! |
$14,995.00 | In Stock! |
Get a Quote |
|

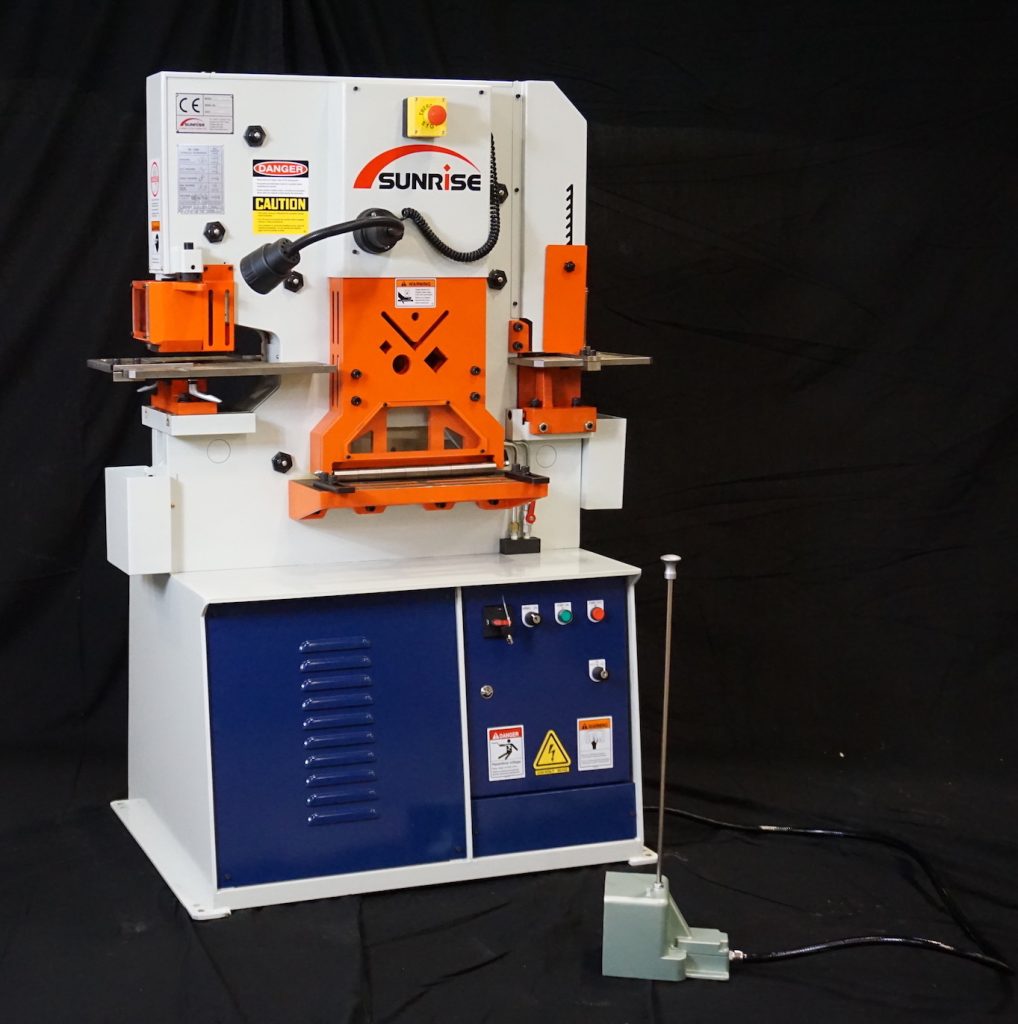

Sunrise IW-66K – Hydraulic Ironworker Capacity: 66 Tons | 4″ Angle | 14″ Plate |
66 Tons | 4″ Angle | 14″ Plate | New, Single Cylinder, High-Speed, Vertical Design, Includes Efficiency Package, Hydraulic Hold-Down, New 3 Year Warranty! |
$17,995.00 | In Stock! |
Get a Quote |
|

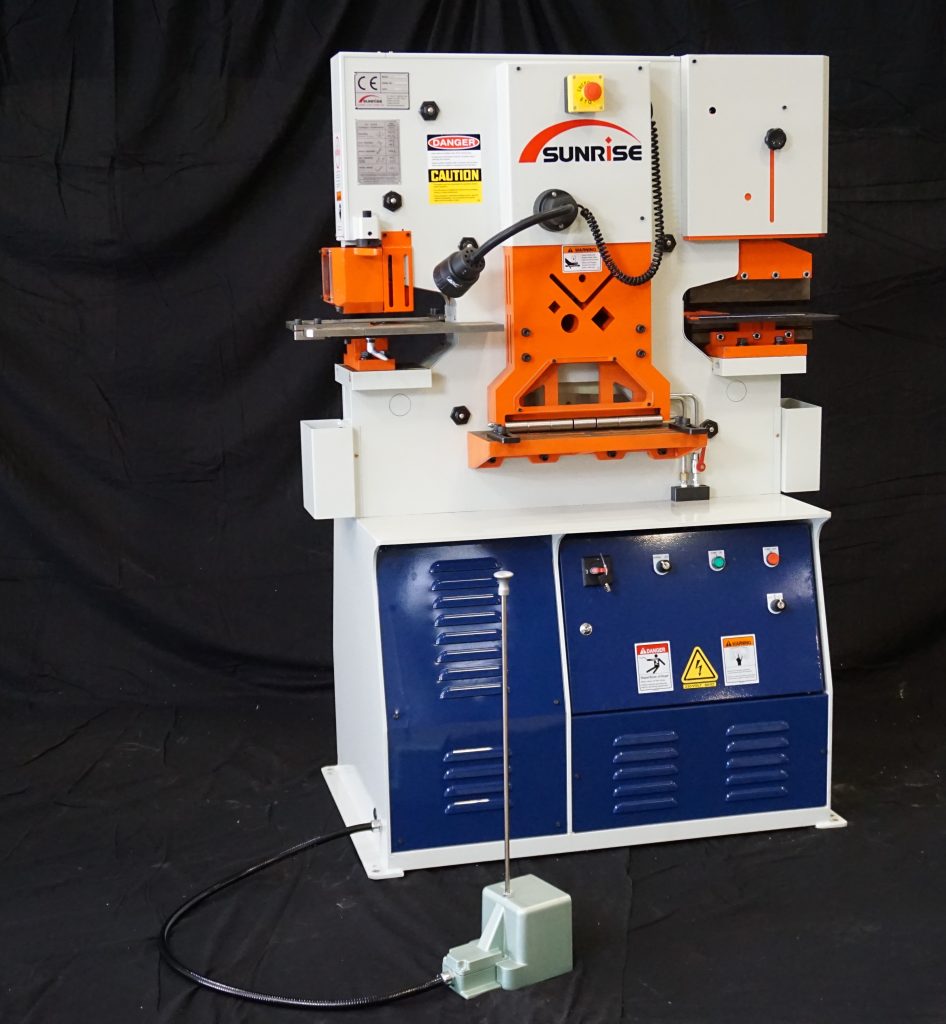

Sunrise IW-66KB – Hydraulic Ironworker Capacity: 66 Tons | 4″ Angle | 14″ Plate | 12″ Press Brake |
66 Tons | 4″ Angle | 14″ Plate | 12″ Press Brake | New, Single Cylinder, High-Speed, Vertical Design,Integrated Press Brake, Includes Efficiency Package, Hydraulic Hold-Down, New 3 Year Warranty! |
$18,995.00 | In Stock! |
Get a Quote |
|

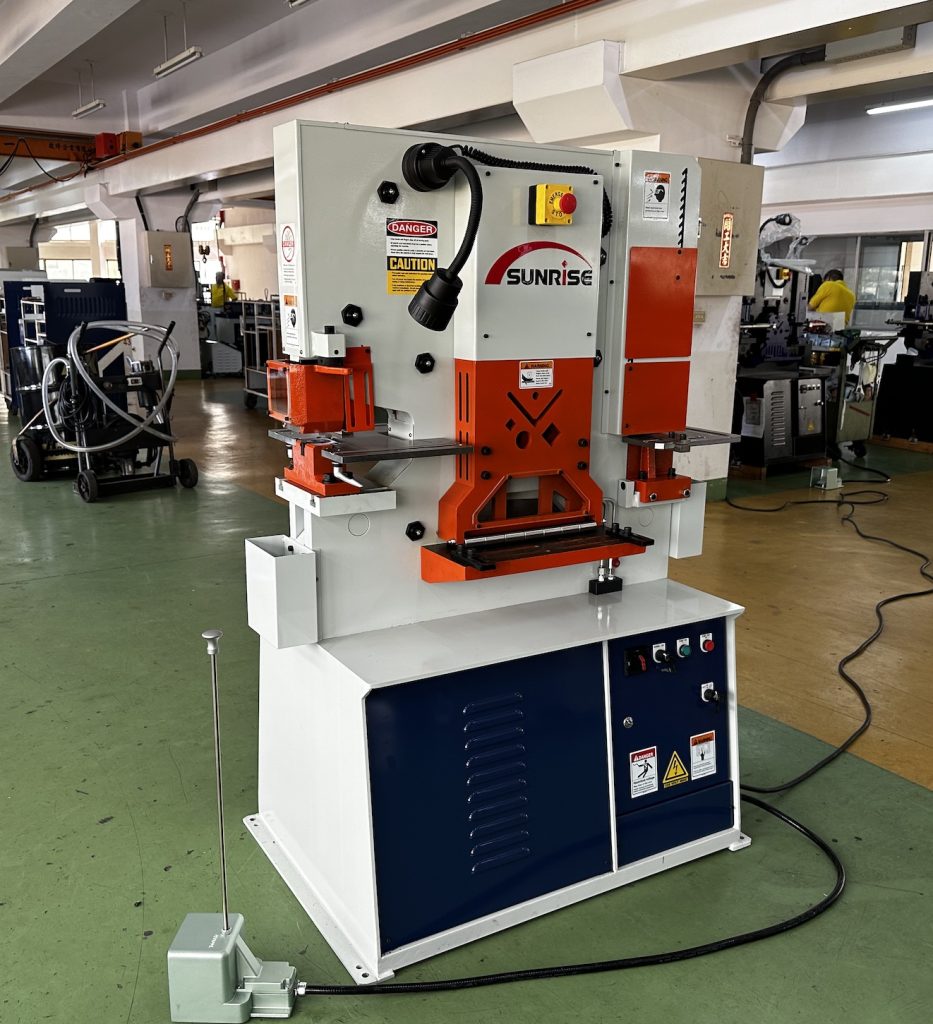

Sunrise IW-66KBN – Hydraulic Ironworker Capacity: 66 Tons | 4″ Angle | 14″ Plate | 4″ Press Brake | Notcher |
66 Tons | 4″ Angle | 14″ Plate | 4″ Press Brake | Notcher | New, Single Cylinder, High-Speed, Vertical Design,Integrated Press Brake and Notcher, Includes Efficiency Package, Hydraulic Hold-Down, New 3 Year Warranty! |
$19,995.00 | In Stock! |
Get a Quote |
